High-Speed Individual Drive Aluminum Wire Drawing Machine​ LFD-560/450

Aluminum Wire Drawing Machine with Individual Drives is used for drawing copper and aluminum or alloy wire with high speed.
  • item no.:

    LFD-560/450
  • product orgin:

    China
  • color:

    as Required
  • MOQ:

    1 set
  • Warranty:

    12 Months
  • products details

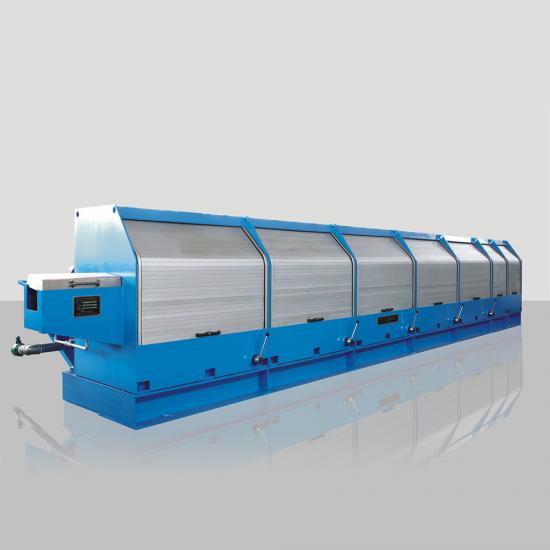

High-Speed Individual Drive Aluminum Wire Drawing Machine LFD-560/450


Product Description:


S-LFD-450/11 high-speed single-drive aluminum wire drawing machine is to make Φ9.5mm ordinary aluminum rod into Φ2.1mm-Φ4.5mm single aluminum wire. The wire drawing drum is arranged in a row for continuous drawing. The wire drawing host adopts single-drive full frequency conversion motor control; the energy saving effect is obvious; the mechanical and electrical speeds are balanced and the operation is convenient, and the fast die change is realized. This machine has the advantages of simple and convenient operation, high production efficiency, and good quality of finished products.


Wire Drawing Machine with Individual Drive main body is welded from high-strength metal steel plate and finished by tempering and aging treatment. Guaranteed to be absolutely stable and easy to install!The front end of the main stand has a wire drawing wheel, by a drive system for the motor, reducer and guard.
Drum wheel The fixed speed wheel is inlaid structure, the surface of the wide drum rim is sprayed with tungsten carbide, and the double-cone structure is used on both sides. When the surface is worn, only the drum ring needs to be replaced.

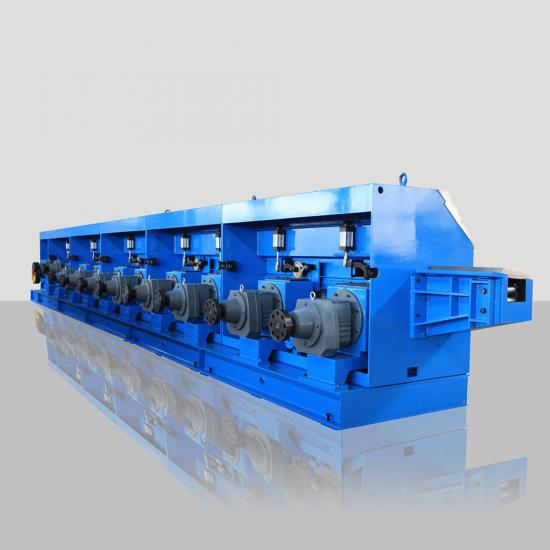

Each of drawing drums is driven by a separate AC variable frequency motor through a reducer. The motor and the gear box are connected by a coupling. Control unified by PLC, can realize mode-hopping operation, and stop idle drums when drawing large-size wire, energy-saving and efficient.


Specification Parameters:

Drawing material
Max. inlet rod diameter
Outlet wire diameter
copper
∮8mm
∮1.2mm~Ф4.0mm
aluminum
∮9.5mm
∮1.8mm~∮5.0mm


Features of Construction:
1. The main drawing adopts drive transmission, of which the drawing drums are separately.

2. Driven by DC motors via gearbox with individual computerized settings for control.

3. While drawing specially-shaped wires, it is equipped with guide rollers, easy for deformation. Non-slipping makes better surface finish and less loss.


4.  Straight type layout drawing cone, with quick die change system.

5. Elongation of die sequence are adjustable, easier to equip die set and keep longer life span of die set.


In 2003, Ito-sin(DeYang) Wire & Cable Equipment Co.,Ltd. was awarded the certificate of quality administration system issued by Britain DAS authority and the certificate of quality administration system approved by Britain UKAS authority. In 2005, it was approved by the international wire & cable association as one of the standing members.


Application:

The production line is used to draw bare copper, aluminum round single wire and specially-shaped wires for the wire and cable industry.


FAQ:

Q1. What information should I let you know if I want to get a quotation?
A: Item Name,Size,Initial Quality you require.
Q2. How to make the payment?
A: T/T
Q3. When will you deliver the machine?
A: Delivery Time for 30-40 days.
