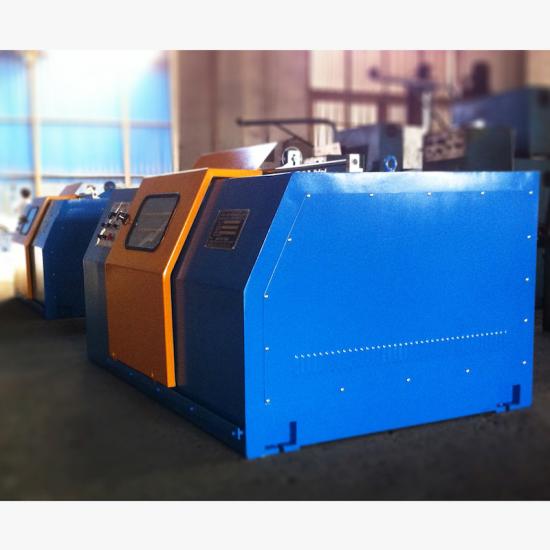

Cu Rod Middle Drawing Machine Type ZL250/17 with Annealer and Dual Spooler

Medium copper wire drawing machine with annealer is used to drawing and annealing bare copper wire from 0.4mm-1.2mm.
  • item no.:

    ZL250/17
  • product orgin:

    China
  • color:

    as Required
  • MOQ:

    1 set
  • Warranty:

    12 Months
  • products details

Cu Rod Middle Drawing Machine Type ZL250/17 with Annealer and Dual Spooler


Product Description:

This Cu Rod Middle Drawing Machine is special for copper wire 0.4-1.2mm. Finished wire is wound by the 630 single or dual bobbin automatic change take-up machine. Power Transmitted by high accuracy bevel gears which are driven by AC two motors, lower noise, easier maintenance and reliable quality; To draw 17 copper wires at the same time, which will improve the quality ,meanwhile, it reduce the power consumption and reduce labor cost significantly. Two types annealing part are available.

1. Equipment composition

      One host of LHT-250 wire drawing machine

      TH-200 tie head threading machine set

      One set of TH-2000 annealing machine

      DZG-6D steam generator set

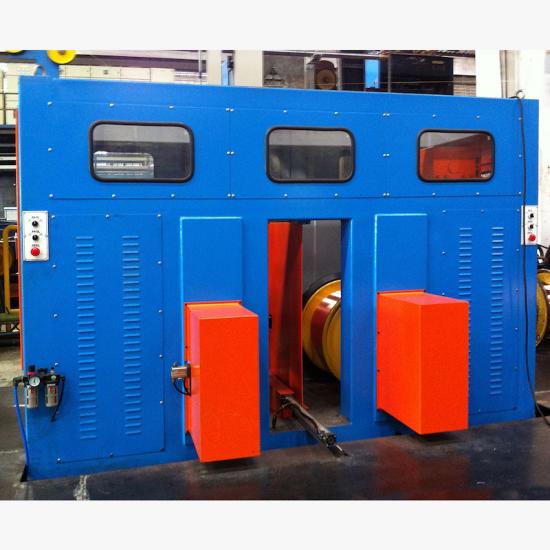

      WS-630 take-up machine one set

      Pay-off machine set

      Main engine oil pump set

      Annealing pump set

       Console one

       Electrical operating system one set

2. Technical parameters

2.1 Maximum inlet specification: max.3.5mm

2.2 Maximum outlet specification: φ0.5—φ1.6mm

2.3 Maximum number of passes: max. 17

2.4 Maximum speed: max.25m/s

2.5 Mechanical reduction rate: 20% (15.5% for rated diameter of die)

2.6 Drum diameter: 250mm

2.7 Main engine power: AC 55 KW

2.8 Take-up host power: AC 15KW

2.8 Overall size of drawing machine: 12000x2900x3400mm

2.10 Total net weight: 8000 kg


Lubrication part



Specification Parameters:

Inlet wire diameter
MaxΦ3.0mm
Outlet wire diameter
Φ0.4mm-Φ1.2mm
Max. Linear speed
1500m/min (free load)
Max. Diameter of drawing cone
Φ250mm
Diameter of final capstan
Φ250mm
Max number of drawing dies
17 No.'s
Diameter of drawing die
Φ25mm×10mm
Number of drawing cones
4 No.'s


Lubrication part
Temperature ≤40℃
Flow 12~18m = 3 \* Arabic 3/h
Power supply
3-phase voltage ~3×380 VAC(±10%)
Single phase voltage ~220 VAC(±10%)
Power 50 Hz (±2%)

Copper Wire Drawing Machine

Features:

1. Special seal system between the gear box and drawing section to prevent oil leakage and mixed.

2. Ironed cast and Wear-resistant capstan can keep long life.

3.For Second-section-annealing system, outside electrically neutral (no current flow to other unit)

4. Longer annealing section with tension ensure good and stable elongation.

5. Two types annealing were available to meet different size range and raw material.

6. Besides normal copper, also is a good choice for brass and some welding wire.


In 2003, Ito-sin(DeYang) Wire & Cable Equipment Co.,Ltd. was awarded the certificate of quality administration system issued by Britain DAS authority and the certificate of quality administration system approved by Britain UKAS authority. In 2005, it was approved by the international wire & cable association as one of the standing members.


Application:

It is used to drawing and annealing copper rod. In addition, it is applied to making electric wire. Our company will provide a series of production equipment to meet our customers' need, concluding drawing machine, rigid frame stranding machine and extruder.


FAQ:

Q1. What information should I let you know if I want to get a quotation?
A: Item Name,Size,Initial Quality you require.
Q2. How to make the payment?
A: T/T
Q3. When will you deliver the machine?
A: Delivery Time for 3 months.
