The main components of LHD-450 / 13-2 Double-head Copper Pull Machine(2)

Feb 01, 2020

This blog continues from the previous blog to continue to explain the main components of the LHD-450 / 13-2 double-head copper pull machine.

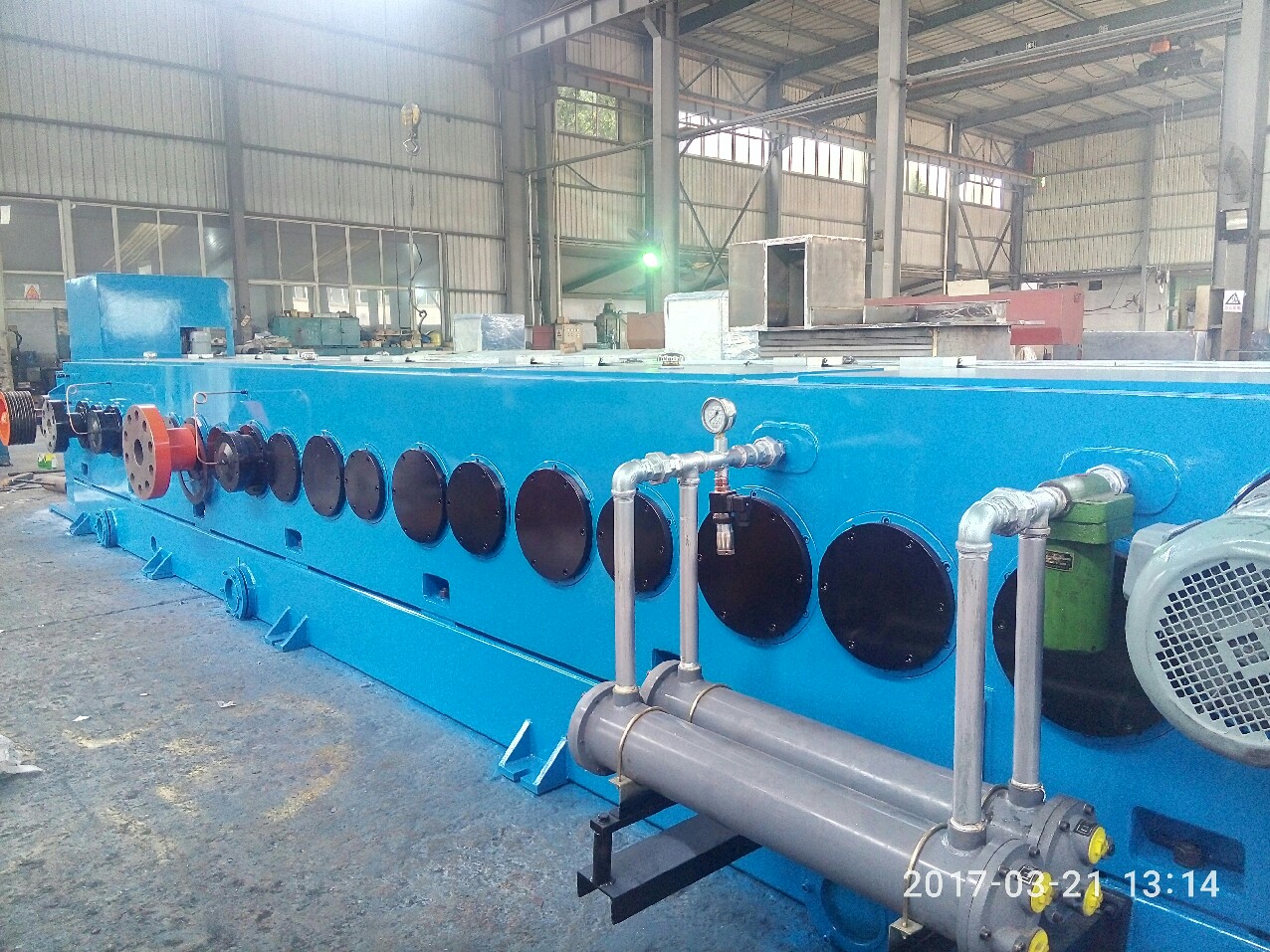

double-head copper pull machine

6. Annealer

1) Application:

To be equipped with the copper rod breakdown machine, it is capable of producing Φ1.35~Φ3.5mmsoft wire by means of continuous annealing.

2) Main technical data (water tank placed outside) :

General:
Type:	AC resistor continuous annealer
Voltage control	Following line speed
Wire drying	By air wiping
Synchronization between drawing speed and annealing control	Automatic mode
Diameter of annealed wire	Φ1.3-Φ3.5 mm
Max. Annealing speed	20m/s
Max. Annealing current	Max: AC 8000A
Max. annealing voltage	Max: AC 55V
Nominal dia. Of annealing wheel	Φ450mm
Motor power of cooling water pump for annealing	11kW/AC
Steamy running pressure	≥0.2 Mpa, with DZG-18kW steam generator
Working pressure of air compressing	0.4-0.6 Mpa to be prepared by the User

7. Pneumatic system Double spooler

- Type: Semi-automatic dual spooler -φ500/φ630 twin spooler is mainly used to draw copper wire of1.2mm～3.5mm continuously with automatic bobbin change to get a continuous production. - Wire traversing pitch is adjustable, bobbin loading & unloading, clamping and release are manually control by pneumatic system. - Spool changing from empty to full automatically controlled by PLC, ensures spool changing successfulness up to 99.6%
Max. speed	25m/s (Max)
Speed during bobbin changing	8-12m/s
Size, power and rotating speed of take-up motor	2x30kW/AC, n=3000r/min Siemens (China) frequency variable motor
Traversing motor	1.5kW /AC Siemens (China) frequency variable motor
Max. width of traversing	460mm
Traversing pitch	6mm (stepless adjustable) Constant winding by traverser and easy to control the pitch
Traverse type	Motor driven type
Speed control	PLC
Spool load & unload type	Manual by pneumatic lifter
Wire cutting & bobbin changing	Automatic
Air cooler for bobbin	Available
Bobbin-change release and compressor	Available
Size of bobbin	PND500, PND630 Or as per customer’s drawing
Single machine weight	～5.6T

8. Φ800mmBasket Coiler

Type	Vertical basket coiler
Carrier size	Φ1100Φ6001550mm
Carrier weight	1.8T (with wire)
Applied wire diameter	Φ1.38-3.5mm
Capstan size	Φ800mm, surface is coated by tungsten carbonic
Speed	Max.:20m/s
Motor	22kW /AC Siemens (China) frequency variable motor
Motor for traversing	0.2kW/AC
Motor for carrier	0.75kW/AC

9. Electric Control System

Main technical parameters:
