The copper wire drawing machine is a machine that uses the ductility of the copper wire to reduce its diameter through the compression of die to achieve the desired wire diameter. According to the number of drawing heads at one time, it can be divided into single-head copper wire drawing machine, double-head copper wire drawing machine and multi-head copper wire drawing machine; according to the size of the incoming and outgoing wires, it can be divided into copper large puller, copper middle puller, copper small puller, copper fine puller and copper micro puller. This blog introduces a double-head copper drawing machine——LHD-450 / 13-2 high-speed copper wire drawing machine.

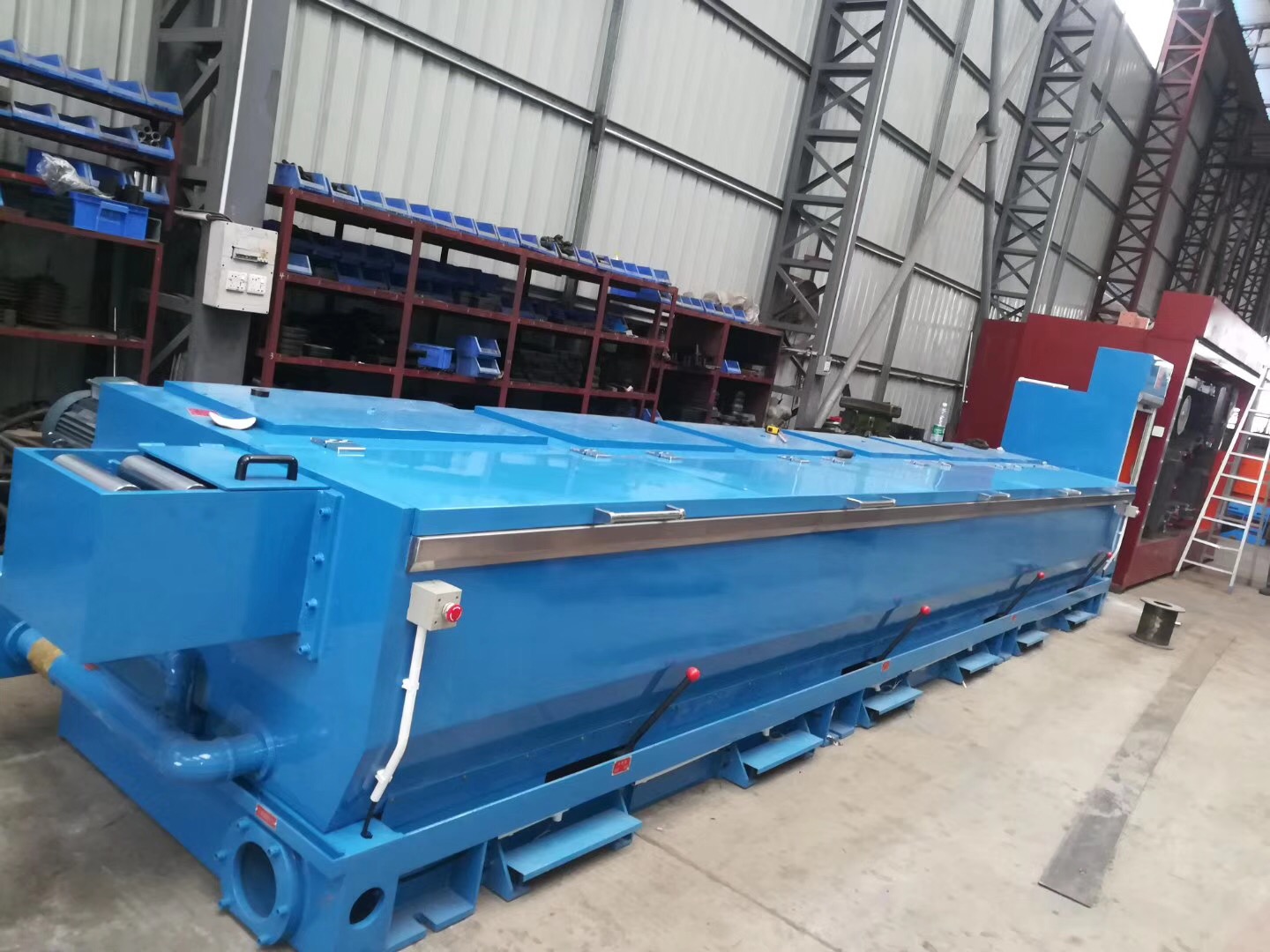

High-speed copper wire drawing machine Type LHD-450/13-2 or called rod breakdown machine works to draw Φ8mm pure copper rod into Φ1.3mm~Φ3.5mm wire simultaneously. The drawing capstans are arranged in a line that are able to work continuously with drawing speed; and also wire can be continuous annealed; and speed of mechanical parts and electrical control can match with each other. It is easy to operate, easy to change dies quickly. This machine has features of easy and convenient operation, high efficiency and good quality of product.
1. Main Technical Data
|
Inlet rod diameter |
2×Φ8.0mm |
|
Outlet wire diameter |
Φ1.3~3.5mm（≥3.6 using single line production） |
|
Max. Line speed |
25 m/s (Max.) |
|
Drawing capstan diameter |
Φ450mm |
|
Max. drawing pass |
13 drafts |
|
Length of accumulated wire |
>7m |
|
Size of take-up bobbin |
PND630, PND500 |
|
Speed reduction ratio between capstans |
26~46% die No. 13 adjustable |
|
Motor of main drawing machine |
450kW/ DC |
|
Motor of final capstan |
110kW / DC |
|
Motor of dual spooler |
30kW/ AC * 4 pcs Siemens (China) variable frequency motor |
|
Motor for take-up |
22kW/ AC * 1 pcs Siemens (China) variable frequency motor |
|
Die holder size |
Φ53x35 mm |
|
Annealing mode |
AC annealing |
|
Annealing current |
Max.8000A/AC |
|
Annealing voltage |
Max. 55V/AC |
|
Total install power |
～1200KVA |
|
Power supply |
380V/60hz |
|
Operation direction |
Operator facing machine: left Pay-off right take-up |
|
Color of machine |
Rail 5015 to be confirmed by buyer |
2. Main components
|
Pay-off stands |
2 set |
|
Wire Pointing & Threading Device |
1 set |
|
Main wire drawing machine (casting gearbox of main machine) |
1 set |
|
Lubricating system and cooling system for main gear box and drawing oil tank |
1 set |
|
AC Annealer |
1 set |
|
Vertical wire tension accumulator |
1 set |
|
Pneumatic dual spooler (Ф500mm, Ф630mm) |
1 set |
|
Dual spooler 800 |
1 set |
|
NSK bearing is used for all components of the main machine except outsourced items, such as pump, motor, etc. |
1 |
|
Electrical control system |
1 set |
